G1/4 x 6.35 mm adapter
In stock
The adapter is designed to easily connect a standard G1/4“ threaded outlet to a 6.35 mm (1/4”) or 9.52 mm (3/8″) tube in a misting system. Robust and reliable, it ensures a perfect seal even under high pressure, up to 70 bar.
Easy installation
Simply cut the tube, then insert it into the connector.
Compact size
This misting connector is designed to be compact and fit perfectly into your structure.
Quality and lifespan

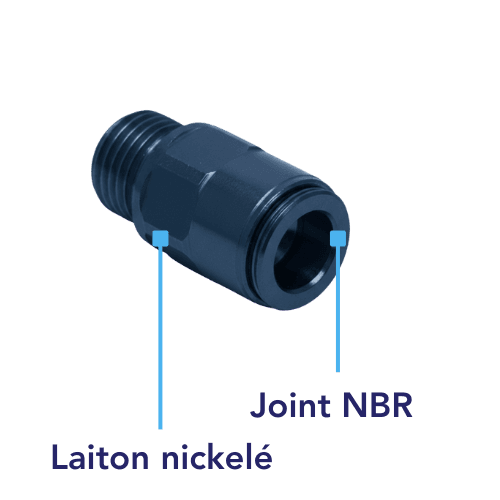

The OA6 G1/4″ adapter is made of nickel-plated brass and equipped with an NBR seal for optimal service life.
Flexible and customizable
1/ Misting outlet
2/ Tee
3/ Elbow
4/ Sleeve
5/ Nozzle holder
6/ Side nozzle holder
TECHNICAL SPECIFICATIONS
Made of nickel-plated brass, it is corrosion-resistant and ideal for both outdoor and indoor installations. Thanks to its quick-connect or compression fitting system, installation is simple and requires no special tools.
This adapter is particularly useful for connecting a misting pump or threaded accessory to a 6.35 mm or 9.52 mm tube diffusion line. It guarantees a secure, durable installation that is compatible with most high-pressure misting equipment available on the market.

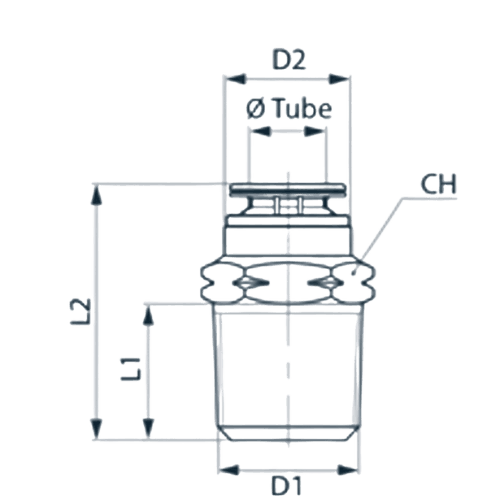

FEATURES
Ø 6,35 mm
200.014.001
24.9 x 16 x 16 mm
0.02 kg
Ø 9.52 mm
200.038.001
31.2 x 16.5 x 16.5 mm
0.04 kg
